Realizing the Effective Detection of Tumor in Magnetic Resonance Imaging using Cluster-Sparse Assisted Super-Resolution

1. INTRODUCTION

Medical imaging is a safe and reliable method for disease detection and diagnosis. There are various medical imaging techniques employed in clinical practice like Computed Tomography (CT), Positron Emission Tomography (PET), Magnetic Resonance Imaging (MRI) to name a few. These techniques provide various functional and anatomical information and that too at varied temporal and spatial resolutions [1]. A high-resolution medical image is a key to better medical research or diagnosis and treatment

However, due to physical and hardware constraints, the images produced by the above-mentioned imaging techniques are of low resolution and are noisy; this negatively affects medical research and diagnosis [2]. Improving the imaging hardware to get better quality images is expensive and not a viable option.A potential solution is to use the Low Resolution (LR) image produced by the imaging techniques and produce a High-Resolution (HR) image using appropriate techniques. This HR image can lead to an accurate image analysis giving a better clinical diagnosis. SR is an appealing method which does exactly the same; it takes an LR image and yields an HR image. However, the undetermined nature of SR makes it a challenging problem to solve [3]. A huge amount of HR images, when decimated, produce LR images, this makes it difficult to restore accurate details from the LR image, moreover, most SR methods are a convex optimization problem and it is cumbersome to balance the regularization terms while simultaneously yielding high-resolution images [4]. Contrary to traditional methods, which uses just a single LR image, Liang et al. [5], used a sequence of images, assuming that there were no changes in imaging conditions (focal length, lighting, etc.) [6]. However, that is not the case and the performance of the SR method is affected by changes in imaging conditions in each image of the sequence. Using the process of SR, an HR image can be obtained from an LR image. However, this method assumes that the previous knowledge of restoration is known i.e. the impulse response (point spread function) of the system is known. Moreover, in the majority of the cases, this point spread function is not known. Current research has made some improvements in the usage of this method but these improvements are not very significant and the applications are still limited.

Jeong et al. used a fuzzy system in SR image estimation. The PSF (Point Spread Function) was assumed to be a circle and for the degeneration matrix, a cyclic square matrix was employed [7]. In a study by Alqadah et al., Linear Spatial Invariant (LSI) was used to deal with PSF and Gaussian Quadratic Criterion and Lanczos algorithm was used to approximate the values of the fuzzy parameters [8]. Herment et al. pioneered SR in MRIs, and the images were reconstructed using k space data with the help of 3-D MRI volumes [9, 10]. However, the lack of isotropic resolution leads to poor results for brain MRI. Peeled and Yeshurun applied IBP algorithm for SR and used LR diffusion tensor images for MRI [11]. Scheffler negated this result [12] and Greenspan further verified it using 2-D multi-slice MRI scans and applied SR on them [13]. SR was used on functional MRI data by Peeters et al. [14]. In a functional MRI, the temporal activity is visible. An additive model was used to compute the shared space from the pixel of LR and HR image

Carmi et al. further explored the application of SR in MRI data by using a novel sampling condition [15]. They used uniform spatial shifts and equal sampling in LR images and with this, they managed to propagate the global spatial errors in the SR reconstructed HR image. Bai et al. further improved the resolution of MRI brain images by using combinations of orthogonal scans of the same subject [16], the MAP function devised by Hardie et al. was used for this purpose [17]. For SR reconstruction, nearest neighbours and interpolation-based methods like linear interpolation can also be used [18, 19]. However, it becomes difficult to preserve edge and texture when using this method thus leading to blurred edges and textures. Lu et al. explored learning-based methods for SR reconstruction of MRI images [20, 21]. Using the HR T-1 weighted image, the intra-patient information is extracted which is used to guide the SR process. Further, an LR T-2 weighted image can be constructed by using an extension of the previously mentioned method along with dictionary learning and a sparse representation

2. RELATED WORK

Many recent approaches have been proposed in the domain of automatic diagnosis of brain tumor detection via MRI using machine learning and computer vision. Jose et al. [26] work was one of the first articles which analysed and showed how super resolution could affect the detection of tumor in MRI. They tried to highlight that in MRI typical clinical settings, both low- and high-resolution images of different types are routinely acquired, out of which we can leverage the low resolution imaging by using super resolution imaging techniques. The method suggested reconstructing high resolution images from the low resolution images using information from coplanar high resolution images acquired from the same subject. A work by Plenge et al. [27] also performed a prodigious study on the trade-off between resolution, signal-to-noise ratio and acquisition time. Qualitative experiments were performed, in which they took images of three different subjects using MRI, and the results showed that super-resolution reconstruction was indeed improving the resolution, signal-to-noise ratio and acquisition time trade-offs compared with direct high resolution acquisition. Francois et al. [28] established a supervised patch based image reconstruction technique for to brain MRI super-resolution. They considered a supervised regularization technique that was driven by the similarities between the input image and learning data-set. The similarities were computed using patch based approach and were defined at the voxel scale.

Similar method was devised by Ali et al. [29], where they used a similar super resolution process, for developing a novel technique, which enabled the reconstruction of a volumetric image from multiple-scan slice acquisitions. The technique tries to generate a super resolution of the Fetal Brain MRI volumetric scan. Yun-Heng et al. [30] were the first ones to develop and propose a sparse representation-based super resolution reconstruction for MRI. Their framework as presented was mainly built for the reasons to solve the data collection limitations. They proposed a novel dictionary training method through sparse reconstruction for enhancing the similarity between the sparse representations of low and high resolution MRI block pairs by simultaneously training both the dictionaries. They proposed a new set of sparse representation coefficients, which were used to generate high resolution MRI blocks from the low resolution MRI blocks.

For recent studies, few deep learning based techniques have also been proposed towards this goal. Since, neural networks have shown us how they work better and perform better in accuracy. Chi-Hieu et al. [31], had established a novel deep 3-D convolutional network based architecture for brain MRI super-resolution. They had taken the 3-D approach using the normal super-resolution via neural networks where they generate high resolution images from its input low-resolution with help of patches of other HR brain images. Of course, deep learning techniques have come up in recent times and they outperform classical approaches, but they have few drawbacks such as heavy data requirements, a lot of resource requirements such as high end graphics processors and a lot of time required for training, which sometimes takes many days.

A patch based SR framework which utilizes Fourier Burst Accumulation to form the HR image from LR patches was presented by Jog et al. [32]. The usage of conjugated gradient method and a linear system was devised as a method to acquire HR image from LR image by Poot et al. [33]. A two-stage algorithm for MRI SR was explored. According to Ongie et al. [34], an edge mask was obtained in the first stage, and this mask which represents the edges of the image was used as an image prior to the second stage. The use of Tikhonov regularization for MRI SR in slice-select direction was explored by Zhang et al. in [35]. The Property of self-similarity that is intrinsically present in MRI was utilized along with image priors by Manjon et al. in [36]. Iterative motion correction and HR image estimation was explored for HR fetal brain MRI by Rousseau et al. [37].

SR algorithms which involve sparse coding comprise the use of dictionaries, and it is a key area of research, in these algorithms the efficiency of learning were improved by using these dictionaries. Yang et al. [38] established a method for SR using clustered sparse encoding and learned geometric dictionaries for super-resolution of LR images. Zheng et al. in [39] presented an approach to SR where multiple dictionaries were deployed. Also, a novel dictionary selection method was presented in this work. These dictionaries were then used to generate sparse representation of LR images which was then used to reconstruct the HR image. The concept of sparse coding noise was introduced in [40] by Dong et al., in this method for SR, the objective of restoring the image was defined as suppressing the sparse coding noise. A SR method which preserves image edges was presented in [41] by Huang et al., this edge preserving smoothing was accomplished by using EPS regularization term. A hierarchical and sparse representation for SR image was devised by Liu et al. in [42]. They combined both clustering and collaboration to code the image. Clustering was used to cluster the feature space of an image into multiple LR feature. Collaborative representation was used to map the LR feature subspace to the HR subspace. Another clustering based method for SR was presented by Han et al. in [43]; here the optimal representation problem was solved using jointly-low rank and sparse regularization for each subspace.

In multi-dictionary learning, an important task was to choose the correct dictionary, for this Wei et al. presented the random forest technique, to learn the most suitable dictionary for each patch [44]. A sparse neighbour encoding and a sparse neighbour selection scheme was presented by Gao et al. [45]. A directionally structured coupled dictionary learning was established by Ahmed et al. [46], whereas a semi-coupled dictionary learning for SR was presented by Wang et al. [47]. In both cases, a pair of dictionaries and mapping functions were deployed. Sivakumar et al. presented a method for denoising of MRI using curvelet transform [20].

However, there exists an insufficient amount of work towards using modified sparse representation techniques in the domain of brain tumor detection in MRI. To the best of our understanding, this is the first work to report a cluster-sparse representation based solution for diagnosing the tumor in MRI.

3. MATERIALS AND METHODS

There has been a lot of research and attempts at restoring a high-resolution image (x) from its degraded low-resolution image (y). This can be mathematically expressed as

(1)

The images x and y are represented using lexicographic matrices, the degradation operator is H and the Gaussian white noise is represented by k. The value of H determines the type of image restoration. This scenario is expressed as a minimization problem.

(2)

The l₂ fidelity is and the regularization parameter for image prior is β(x).

Traditional models assume that except for the edges, the image is locally smooth. This assumption leads to inaccurate restoration resulting in the loss of finer details in the reconstructed image. Previous research has indicated that natural images intrinsically have the property of sparsity. This fact can be utilized to represent images using sparse models. In such models, a small sample of elements can be used from a basis set stored in a dictionary. Previously models used wavelets and bandlets which are traditional dictionary sets; however, using a learned dictionary can yield better results. Moreover, these traditional models fail to exploit the similarity that exists between non-local patches. Some methods use weighted graphs to identify textures and other high-level patterns, however, inaccurate weights can lead to loss of details in the reconstructed image.

This research paper introduces Cluster-Sparse assisted Super Resolution technique (CSR), a superior method for restoration of the MR images [22]. This method can effectively exploit the similarity in the non-local patches (non-local self-similarity) and the local sparsity, which is intrinsically present in natural images. An iterative algorithm based on Split Bregman method coupled with self-adaptive cluster dictionary learning method is used for image restoration.

3.1. Traditional Approach

In the traditional approach, the image is divided into n patches denoted by X_K where k = 1,2,..,n and k is also an indicator of the position of the patch in the image. An operator is used to extract X_K from the image, this operator is denoted by . The image patch is expressed as

(3)

To replace the patch back to its former position in the reconstructed image is used. This is nothing but the transpose of the function .

D Ɛ ^R_B s* M is used to yield a sparse representation for each patch X_k in form of a sparse vector α_kƐR^M such that . Here the number of atoms in D is denoted by M. The scenario above can be mathematically expressed as

(4)

In the above equation, the norm used to measure sparsity is determined by p such that pƐ{0,1} and τ is a constant. The above equation is solved using Orthogonal Matching Pursuit (OMP) [23] which is a greedy algorithm.

The following expression represents the degradation based sparsity approach

(5)

The altered and reconstructed image is

(6)

High complexity approximation approaches are used to make dictionary learning feasible since training a proper dictionary is a non-convex problem

3.2. CSR Approach

In this approach, instead of using patches, a cluster of patches is used for training the dictionary. Sparse representation of clusters is used to capture the similarity present in non-local patches, a task which traditional methods failed to do. Fig. (1) illustrates the CSR approach for cluster creation from the MR Imagery x.

The image x of size N is divided into patches X_k where x = 1,2,...,n such that the size of x_k is . Now in L * L training window, the top c matches for a patch are selected. These c best-matched patches for a patch x_k are stored in a set S_x. The patches in S_x, are stored in a matrix X_GK such that .

A function to extract a cluster X_GK from image is defined as:

(7)

To replace the patch back to its former position in the reconstructed image is used. This is again nothing but the transpose of the function .

In the traditional method, a general dictionary was used to improve efficiency a self-adaptive dictionary was used. This self-adaptive dictionary is trained using the formula,

(8)

Similar to the formula in the traditional method, the norm used to measure sparsity is determined by p such that pƐ{0,1} and τ is a constant.

In the above expression, there are two parameters which need to be optimized D_x and {} hence the problem is a joint optimization problem. When the similarity between the reconstructed image and the original image is high, then the value of will be low, while the value of the second term will be low when is very sparse.

The clusters will be reconstructed using the self-adaptive dictionary. The dictionary is solved using the SVD approach where both D_x and {} are alternatively optimized. The CSIR model using degraded version is represented as:

(9)

And the reconstructed image is expressed as:

(10)

The main difference between the model in the traditional approach and the model in the CSIR approach is the different dictionaries being used and the different sparse representations

Iterative shrinkage/thresholding (IST) was used in earlier models to solve the problem but this study adopts a split Bregman Iteration (SBI) [24].

3.3. Experimental Results

The MR image of the human brain is iteratively enhanced in quality using the CSR approach. A Gaussian blur kernel and a 9x9 kernel along with additive noise of comparison is used as the metric to compare the efficiencies of both, the traditional approach and the CSR approach. PSNR is expressed as for given two images I and J.

(11)

Here MSE is the mean squared error and is defined as:

(12)

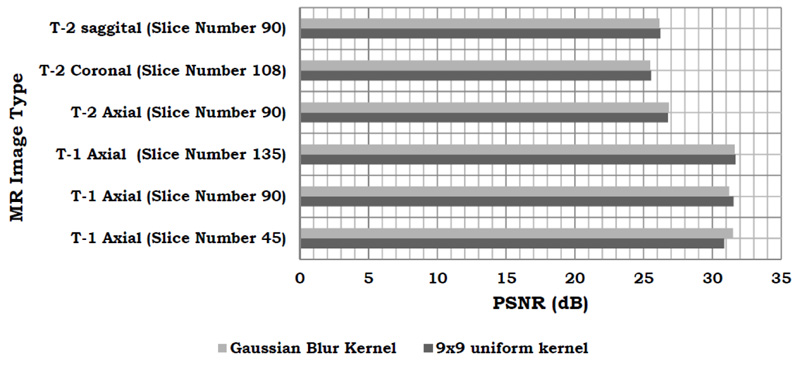

The results of the PSNR comparison show that both the kernels yield similar results and Fig. (2) shows a graphical comparison of the same.

Table 1.

MRI\ Method	CSR Method	Non-Local Means	Bicubic Interpolation	Nearest Neighbour Interpolation
T-1 Axial	30.8592	22.2218	25.9786	21.0829
T-1 Axial	31.5304	22.1411	25.6068	20.9554
T-1 Axial	31.6757	22.1830	26.0537	20.8869
T-2 Axial	26.7767	18.6923	22.0170	17.6479
T-2 Coronal	25.5359	18.1610	21.9001	17.4234
T-2 Sagittal Axial	26.2216	18.4218	22.1784	17.6759

Comparison between the CSR algorithm proposed in this study and other methods which take an approach based on non-local means, nearest neighbour and bicubic interpolation has been done. For this comparison, a 9x9 uniform kernel has been utilized. The PSNR values give a measure of the effectiveness of the different algorithms under consideration (Table 1). Further, Table 2 presents the comparison of the various state-of-the art (SOTA) techniques for Brain MRI Super-resolution.

Table 2.

Reference	SR Technique	Dataset Used	Avg. PNSR
Chen et al. [50]	3D DSCRN	HCP	35.05
Pham et al. [31]	3D CNN	Kirby 21	35.20
Sanchez et al. [51]	3D GAN	ADNI Database	33.28
Wang et al. [52]	Enhanced 3D GAN	HCP	37.28
Mane et al. [53]	3D FSRCNN	HCP	37.53
Ours	CSR	MS Lesion Brain Database	30.86

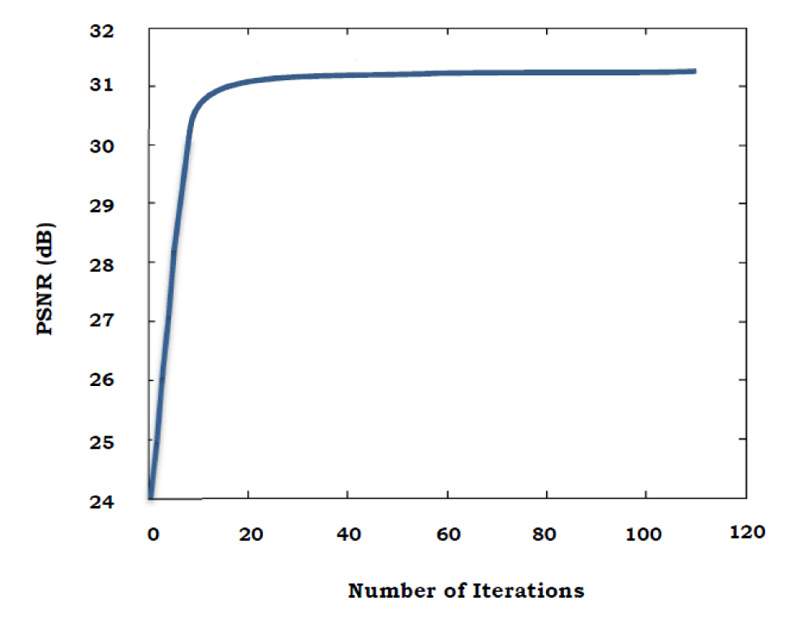

The graph below shows the relation between PSNR value and the number of iterations, where in the PSNR value increases with every iteration (Fig. 3).

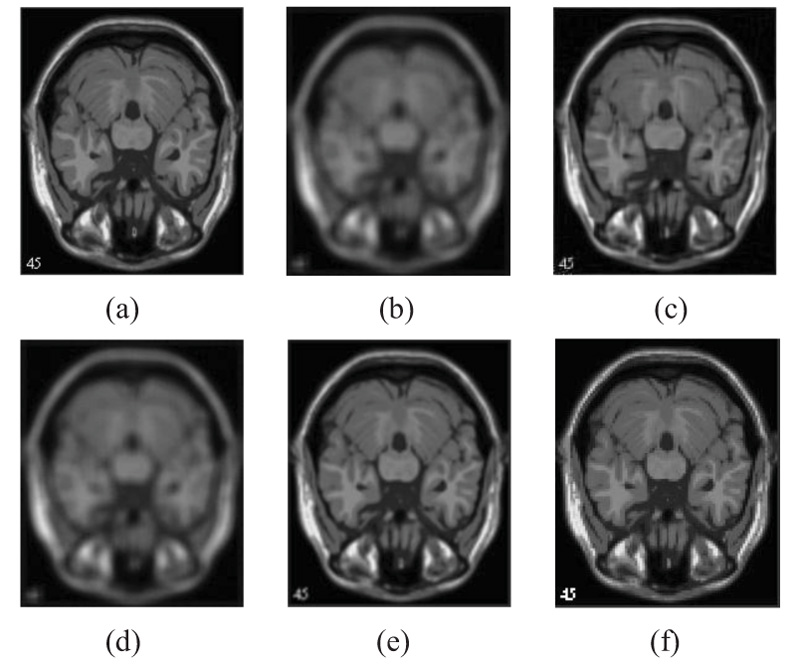

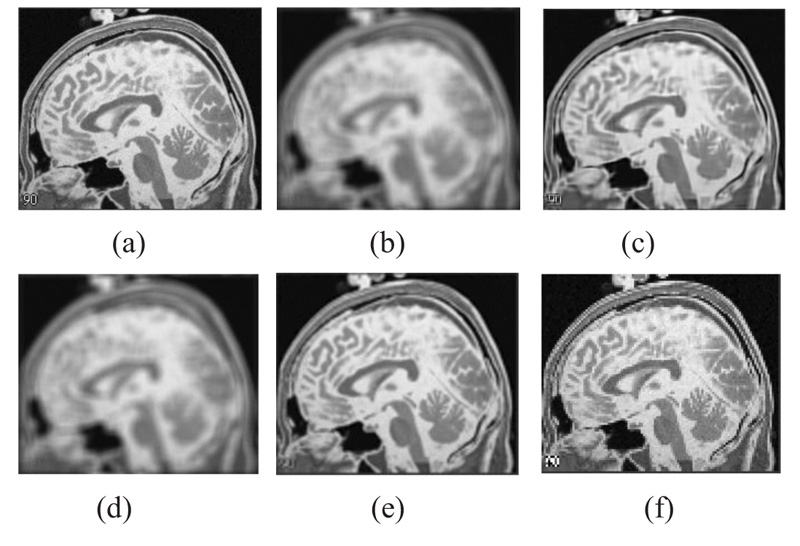

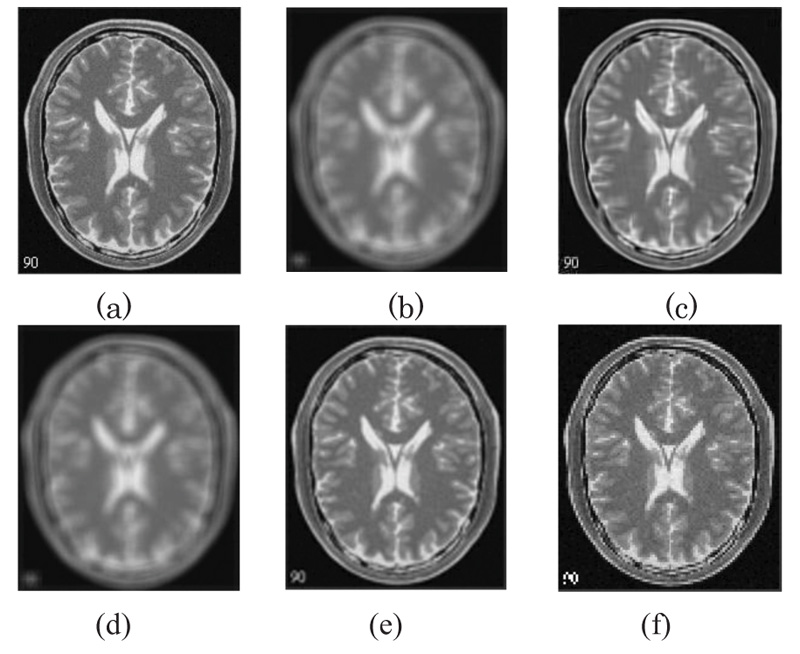

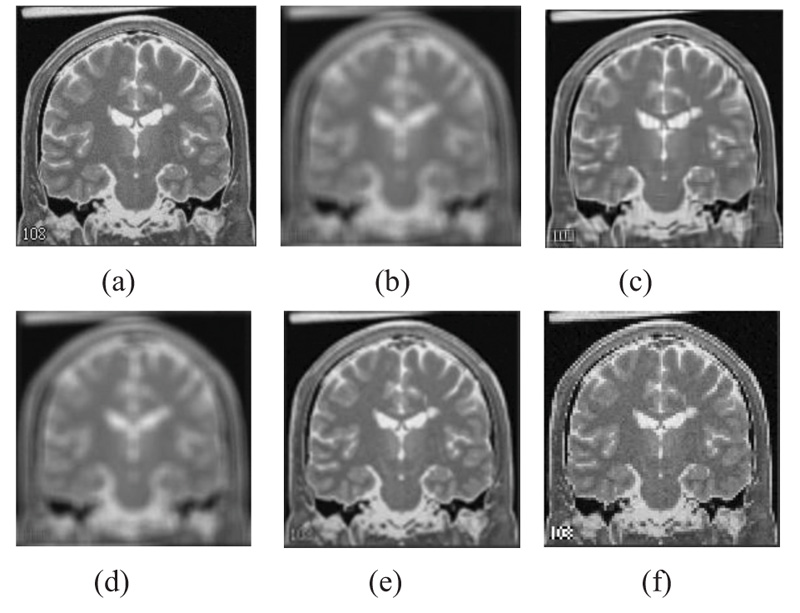

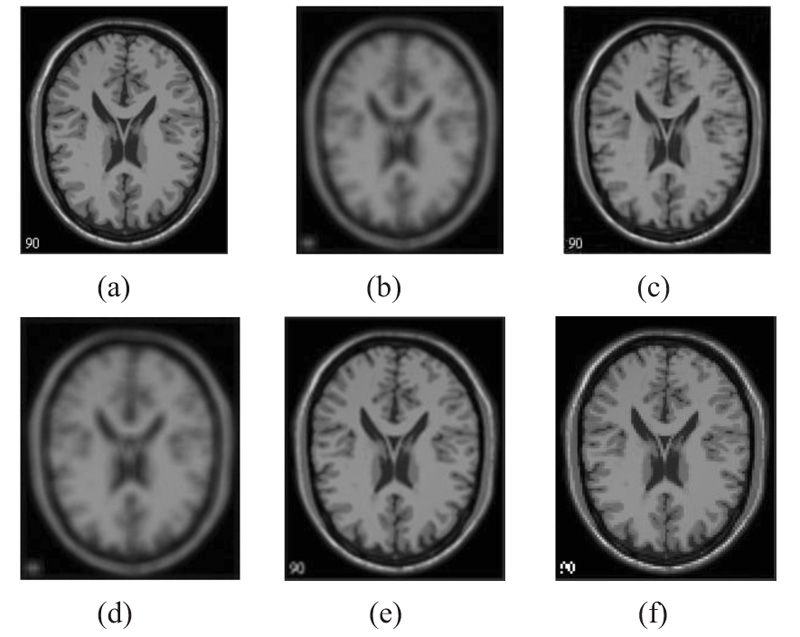

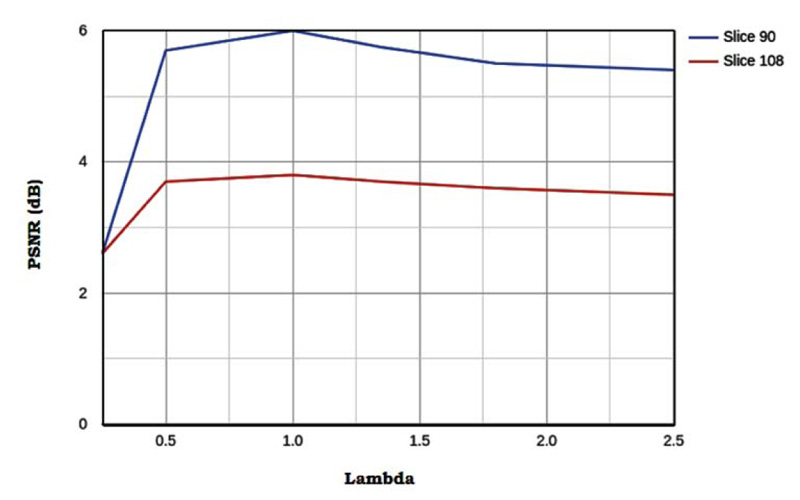

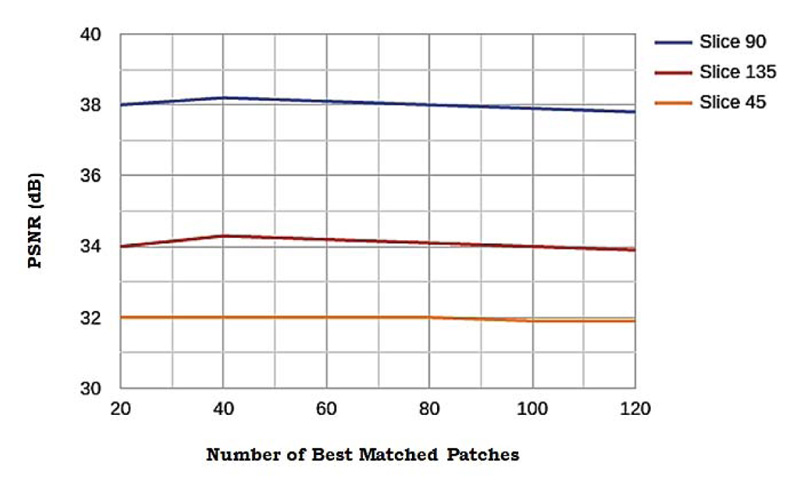

The two forms of MR T1 and T2-w brain MS lesion images [25] (Figs. 4-9) are used for evaluating the reconstructed images using CSR and other methods mentioned.

CONCLUSION

This paper proposes the use of cluster-sparse assisted super-resolution algorithm for Magnetic resonance (MR) images. This algorithm captures the similarity in non-local patches by training the model for clusters instead of patches using a self-adaptive dictionary. This type of training using clusters also leads to better edge and texture retention in the reconstructed image. The experimental results show that the proposed algorithm is more robust to noise and is more effective in producing high-resolution images than traditional SR methods dealing with MR images.

As a result, usage of this algorithm can lead to more effective information extraction from MR images in medical diagnosis and research leading to enhanced detection of lesions.

The current trend in MR image super-resolution involves using deep learning approaches. Convolutional neural networks are used to develop end-to-end image super-resolution model, where various convolution kernels extract features from LR input image to form a feature map, this feature map is used to generate HR images. More recently, Generative Adversarial Networks (GANs) have been used for MR image SR. GANs learn to generate realistic HR image from LR image input, such that the generated HR image is hardly distinguishable from real HR images. However, deep neural networks consume a lot of memory and take a lot of time to compute. Training of these models and inference using them is heavily constrained by the availability of graphical processing units for mathematical computations [47-54].
