In this age of tough competition and stress, heart-related diseases and abnormalities are commonly being found in people even at an early age. To detect cardiovascular diseases (CVDs) earlier and treat them properly, people must do body check-ups regularly. This sometimes requires hospitalization. However, due to various constraints, it may not be possible for everyone to maintain consistency in this regard [1-5]. Using wearable devices (WD) is a convenient option for hospitali- zation. Nowadays, inexpensive WDs are available for health monitoring which are compact and light in weight. They are capable of measuring physical parameters like body temperature, heart rate, blood pressure, electrocardiogram (ECG), etc., for a very long time. One such useful device is a wearable ambulatory ECG recorder, commonly known as W-ECG or A-ECG recorder. They are capable of updating the doctor about the occurrence of any abnormal event to the wearer in addition to recording the ECG signals and related physiological parameters [6-14]. This is possible due to advancements in telemedicine. People nowadays are at risk of various heart disorders because of the type of lifestyle they are living and increased stress levels. The researchers have come up with tele-home-care solutions by using novel standards and wireless technologies in patient care and monitoring. The patient can remain in continuous touch with the physician due to wireless technology and wearable sensors. Stretchability and sensitivity are two important features in wearable sensors/devices/ systems. Conventional piezoelectric sensors are self-powered, but they lack stretchability. The kirigami stretchable piezoelectric sensor is one such sensor that exhibits stretchability and is used in cardiac monitoring and wearable body tracking applications. The integrated sensor demonstrates excellent in vitro and ex vivo performances and provides insights for the potential use in a myriad of biomedical and wearable health monitoring applications. Recently, metamaterial-based and soft, stretchable, and biocompatible sensors have been proposed, and they have shown promising results.

The modern wearable ECG recording and monitoring systems existing in the literature are described in this section. To record the A-ECG signals for a long time (for many hours and even for days), a compact, lightweight WD is used nowadays. V. Vaid et al. [1,2] developed one such WD at IIT Bombay, which is capable of recording a single-lead A-ECG. Its prototype model is shown in Fig. (1).

Fig. (1). Wearable ECG recorder developed by Lal et al. [2] Copyright ©IEEE 2006.

A wearable ECG recorder for daily stress measurement has been developed by Okada et al. [3], as shown in Fig. (2). The body is collapsible and made of plastic. It weighs just 45 g and includes a battery and a 1 GB memory card. Its width, depth, and height measurements are 44 x 17 x 58 mm respectively. An R-wave detection is indicated by the red LED flashes. There are two switches (ON/OFF, START/STOP) and two light-emitting diodes (LEDs). The memory card and battery are easily replaceable. The device also contains three in-built accelerometer sensors.

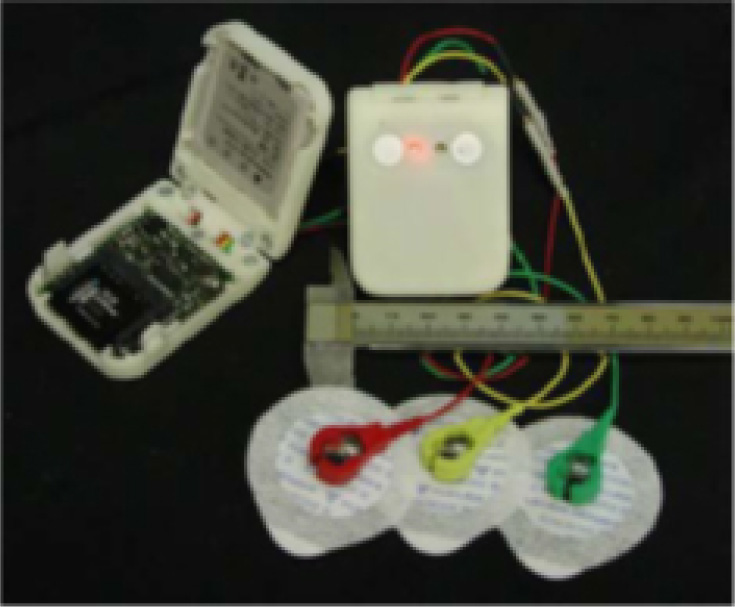

Fig. (2). Portable ECG recorder developed by Okada [3] Copyright © IEEE 2010.

Park, Bai et al. [4] have developed an ultra-low-power, wearable ECG monitoring system using QUASAR’s innovative ECG sensor and an ultra-compact wireless sensor node shown in Fig. (3). They have used 1 Mbps proprietary radio, a very low power transceiver, in place of IEEE 802.15.4. This transceiver consumes less than 10 mA in transmission mode and 22 mA in receiving mode. It is equipped with Ethernet, Wi-Fi connectivity, and USB. Thus, the design addresses ultra-low power, high throughput, and universal connectivity. The quality of the recorded ECG signal (Fig. 4) is quite superior due to innovative ECG and wireless sensors.

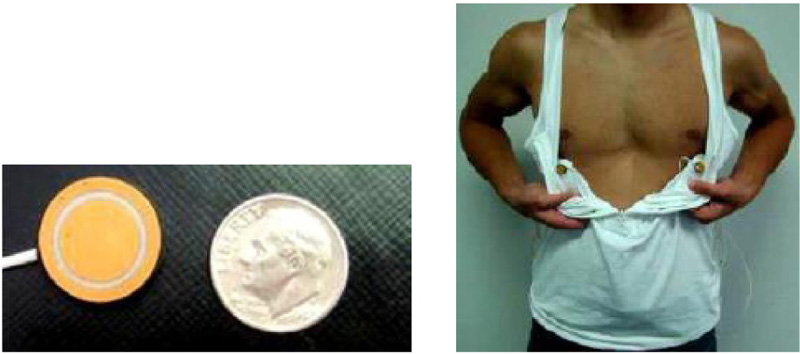

Fig. (3). (a) QUASAR ECG Sensors, (b) T-shirt with sensors by Park [4] Copyright ©IEEE 2006.

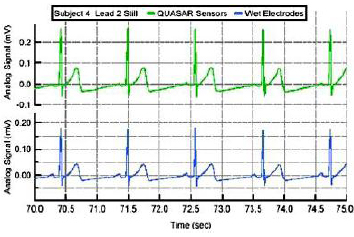

Fig. (4). Data Comparison: QUASAR (green); conventional electrode (blue) [4] Copyright © IEEE 2006.

Chen et al. [5] have developed a Mobicare Cardio Monitoring System for ambulatory and continuous detection. The system, as shown in Fig. (5), consists of a wireless ECG sensor, cellphone, a user interface, a patients' database, and a web-based server. It helps a CVD patient to detect abnormalities and thereby to monitor his heart status. The system captures single-lead ECG, accelerometer signals and transmits them via Bluetooth to the cellphone. The distinguishing feature of this system is the real-time ECG processing algorithm (MobiECG) that includes QRS detection, the onset of Q wave and offset of T wave detection, and intensity of patient's body movements using accelerometer data. The MobiECG transmits only abnormal ECG data to hospitals or care centres over a cellular network (GPRS/3G). Normal ECG data will not be transmitted in order to avoid telecommunication channel flooding.

New wireless technology for tele-homecare purposes proposed by Fensli et al. [6] (Fig. 6) gives better overall monitoring performance and patient care. It gives the patient freedom for mobility and still be under continuous monitoring. They have described a concept of transmitting wireless and wearable ECG signals to the hospital diagnostic station. This concept is intended to detect the cardiac arrhythmias that rarely occur in the patients at home carrying their day-to-day activities.

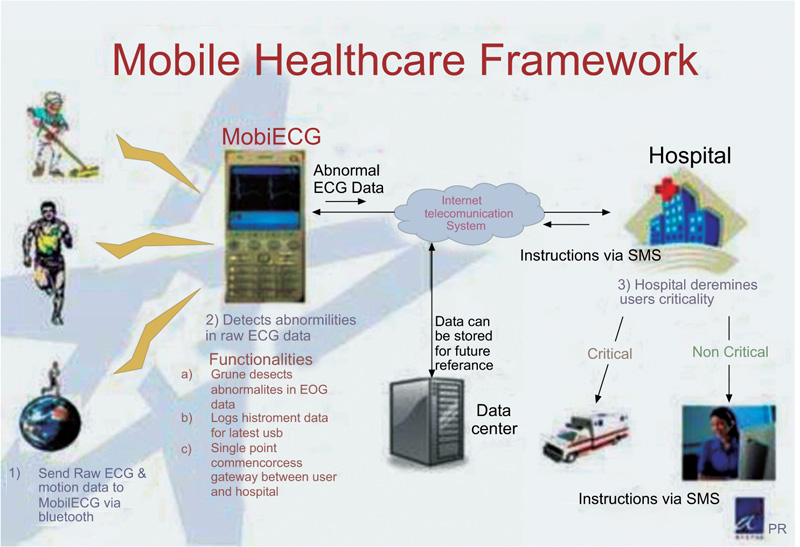

Fig. (5). Mobicare Cardio Monitoring Framework [5] Copyright ©IEEE 2007.

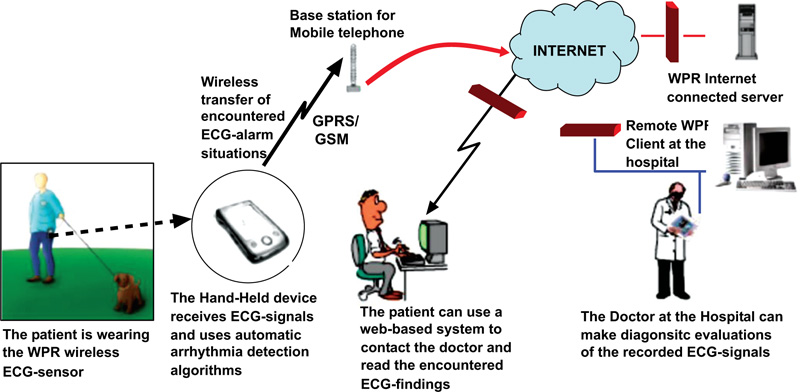

Fig. (6). Wireless ECG-system developed by Fensli et al. [6] Copyright ©IEEE 2005.

In a study, the authors used multiple wearable sensors and described an online sleep/wake classification method using cardiorespiratory signals [7]. It is based on FFT as the main feature and a feed-forward ANN classifier. The method is based on the Heally recording system, as shown in Fig. (7), and records ECG and respiratory signals. This portable recording system uses gel electrodes for measuring a single-lead ECG sampled at 100 Hz and an inductive belt sensor for measuring respiratory effort sampled at 50 Hz. Additionally, the Heally system is also capable of recording EMG from the right shoulder muscle at 200 Hz and EOG at 200 Hz. As shown in Fig. (7), ECG gel electrodes, inductive belt sensor, electronic modules, and NiMH battery are indicated by 1, 2,3, and 4, respectively.

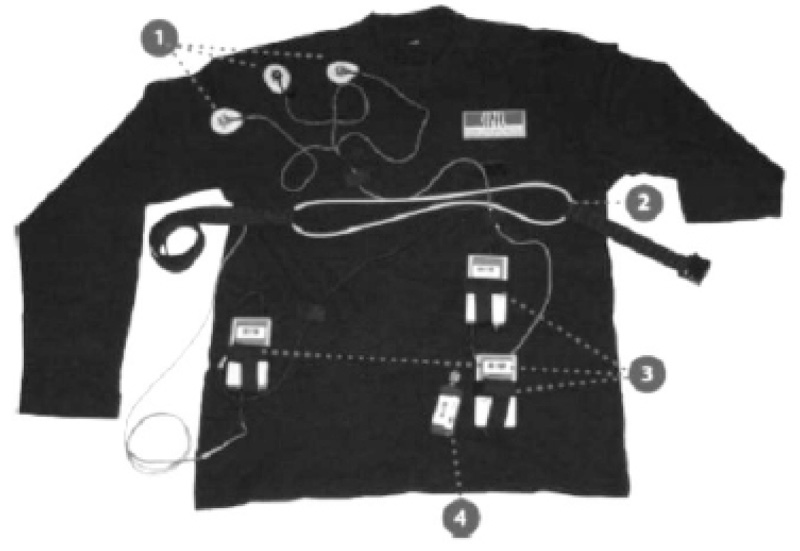

Fig. (7). Heally recording system [7] Copyright ©IEEE 2009.

It is quite awkward to place wearable sensors at multiple body locations, particularly when the user is required to collect the data daily for longer periods. Authors have proposed [8-12] many approaches based on multiple integrated sensors, as it is quite comfortable to wear a single device for the user. Integrating multimodal information can yield additional parameters such as temperature, heart rate, skin resistance, GPS location, etc. Ming Li et al. [13] have proposed a multimodal wearable sensor-based physical activity recognition system using the KNOWME network, as shown in Fig. (8). The KNOWME [14] network utilizes heterogeneous sensors- accelerometer, heart rate, blood oxygen levels, and ECG simultaneously, which send their measurements to a Nokia N95 cell phone via Bluetooth. Moreover, external sensor data are combined with data from the mobile phone’s built-in sensors (GPS and accelerometer signal). Thus, the mobile phone can display and transmit the combined health record to a back-end server (e.g., Google Health Server) in real-time.

In several studies, the authors have implemented various algorithms for the data/ signals acquired from various types of wearable health monitoring systems [15-34]. In one study, an integrated ECG signal-processing scheme is proposed [35]. The system implements multiple real-time signal processing functions, like a baseline and other noise removals, QRS detection, heart rate prediction/classification using a systematic wavelet transform algorithm. This low-cost hardware architecture is implemented using ASICs with 0.18 μm CMOS technology and is very much suitable for long-term cardiac monitoring due to its extremely low power consumption feature.

A windows smartphone-based wearable CVD detection system, HeartToGo, has been developed [36]. It is capable of real-time ECG acquisition and display, feature extraction, and beat classification. The system can detect the premature ventricular contraction (PVC) beats and generate the cardiac summary report that consists of the maximum/ minimum and average heart rate, as well as the number of normal and PVC beats, as shown in Fig. (9). In several studies, more or less similar wearable recorders using varieties of sensors and technologies have been described [37-40].

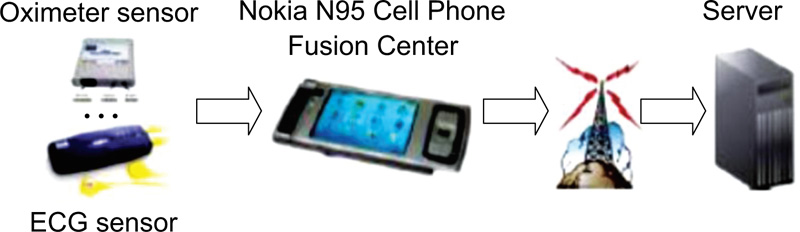

Fig. (8). KNOWME WBAN system [13,14] Copyright ©IEEE 2010.

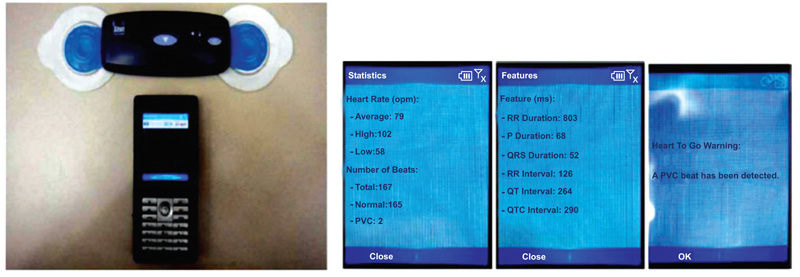

Fig. (9). HeartToGo system and readings [36] Copyright ©IEEE 2010.

Xin Liu et al. [41] have designed an ultra-low power ECG acquisition and monitoring system for WBAN applications. The system shown in Fig. (10) can accurately record and detect the QRS peaks of the ECG waveform with high-frequency noise suppression. The proposed system is implemented in 0.18- µm CMOS technology with two chips: analog front end IC and digital ASIC. The analog IC with an area of 4.25 mm² consumes only 79.6 µW, and the digital ASIC consumes 9 µW at 32 kHz with 1.2 mm². Therefore, this ECG sensor node is convenient for long-term monitoring of the cardiovascular condition of patients and WBAN applications.

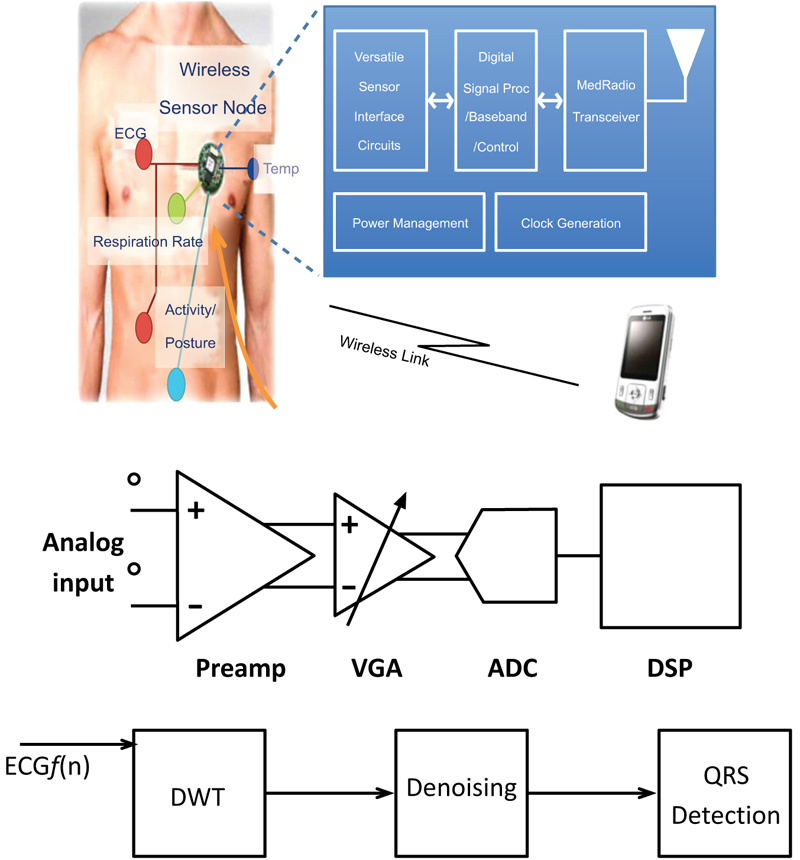

Fig. (10). An ultra-low-power ECG acquisition and monitoring ASIC system for WBAN applications [41].

Patel developed a wearable recorder for acquiring ambulatory ECG and physical movements using an accelerometer sensor [42]. It is a single-lead ECG recording system with a spectrum of 0.05 Hz to 250 Hz. It has been implemented using ultra-low power MSP430 microcontroller with 12-bit ADC and ZigBee wireless connectivity. The signal conditioning unit consists of an instrumentation amplifier (INA 321) with a CMRR of 94 dB up to 3 kHz. Followed by INA 321 are the low-pass and high-pass filters for removing the high-frequency noise and baseline wander, respectively. The filters are implemented by the two in-built op-amps of MSP430, exploring its mixed-signal processing capability. The filtered and digitized ECG signal is then transferred to the nearby base station (laptop) serially via the Zigbee channel at a baud rate of aa5.2 kbps. Fig. (11) below shows the developed GUI and acquired ambulatory ECG signals.

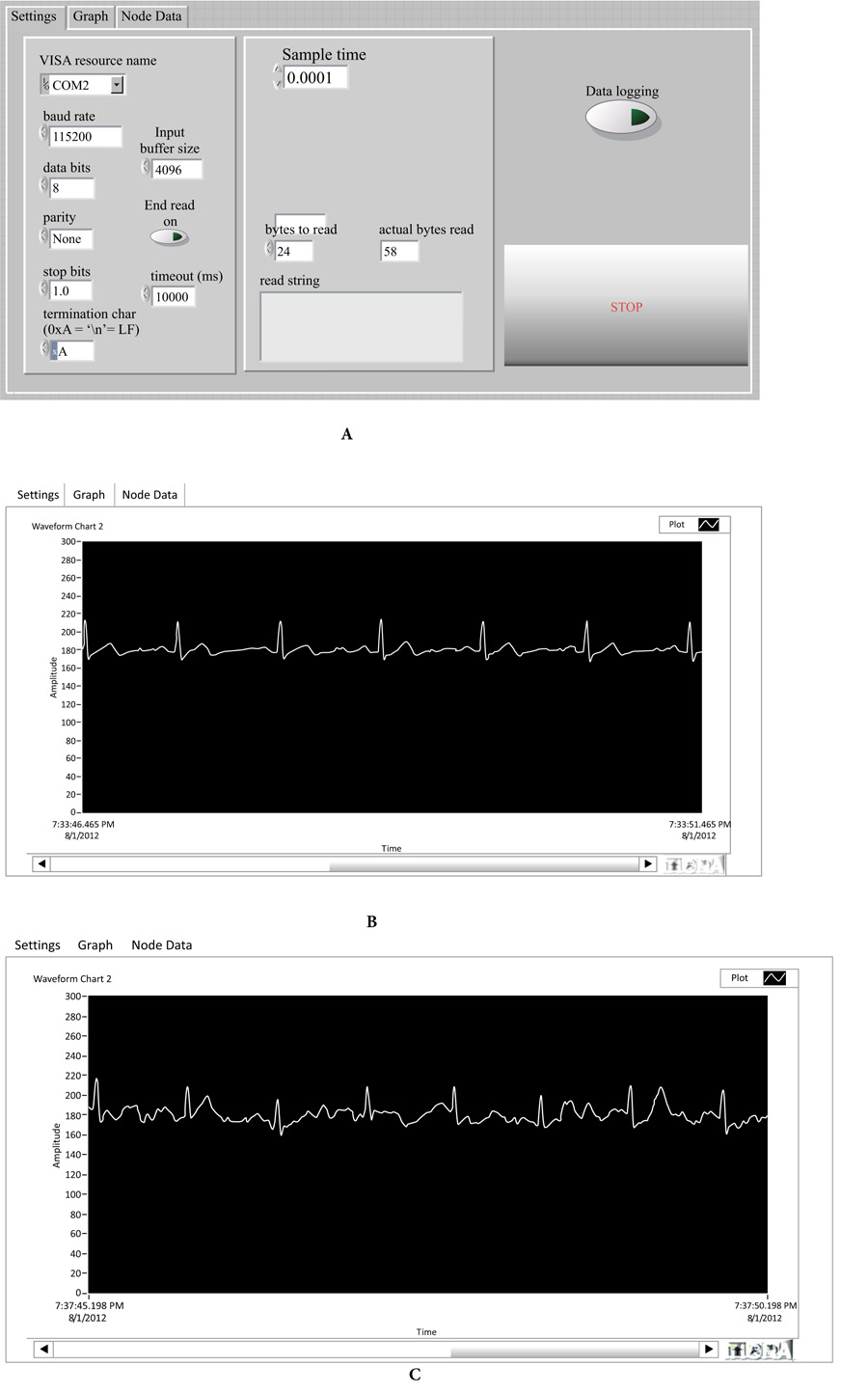

Fig. (11). (a) Front panel of GUI developed in Labview; (b) Ambulatory ECG signal acquired during standing still position (c) Ambulatory ECG signal for slow motion walking [42].

Nirav Patel and R Kher developed a health monitoring system with an android app to monitor ECG, EEG, body temperature, and SpO₂ [43]. The developed system is low-cost and reliable, implemented using an MSP430 microcontroller. The system not only displays ECG/ EEG signals and temperature/ SpO₂ parameters on the smartphone screen but also generates an alert message when the temperature and heartbeat values are outside the critical range. The system is incorporated with a facility to upload the recorded data on Dropbox. Fig. (12) below show the recorded ECG, EEG, SpO₂, and body temperature displayed on an android mobile screen.

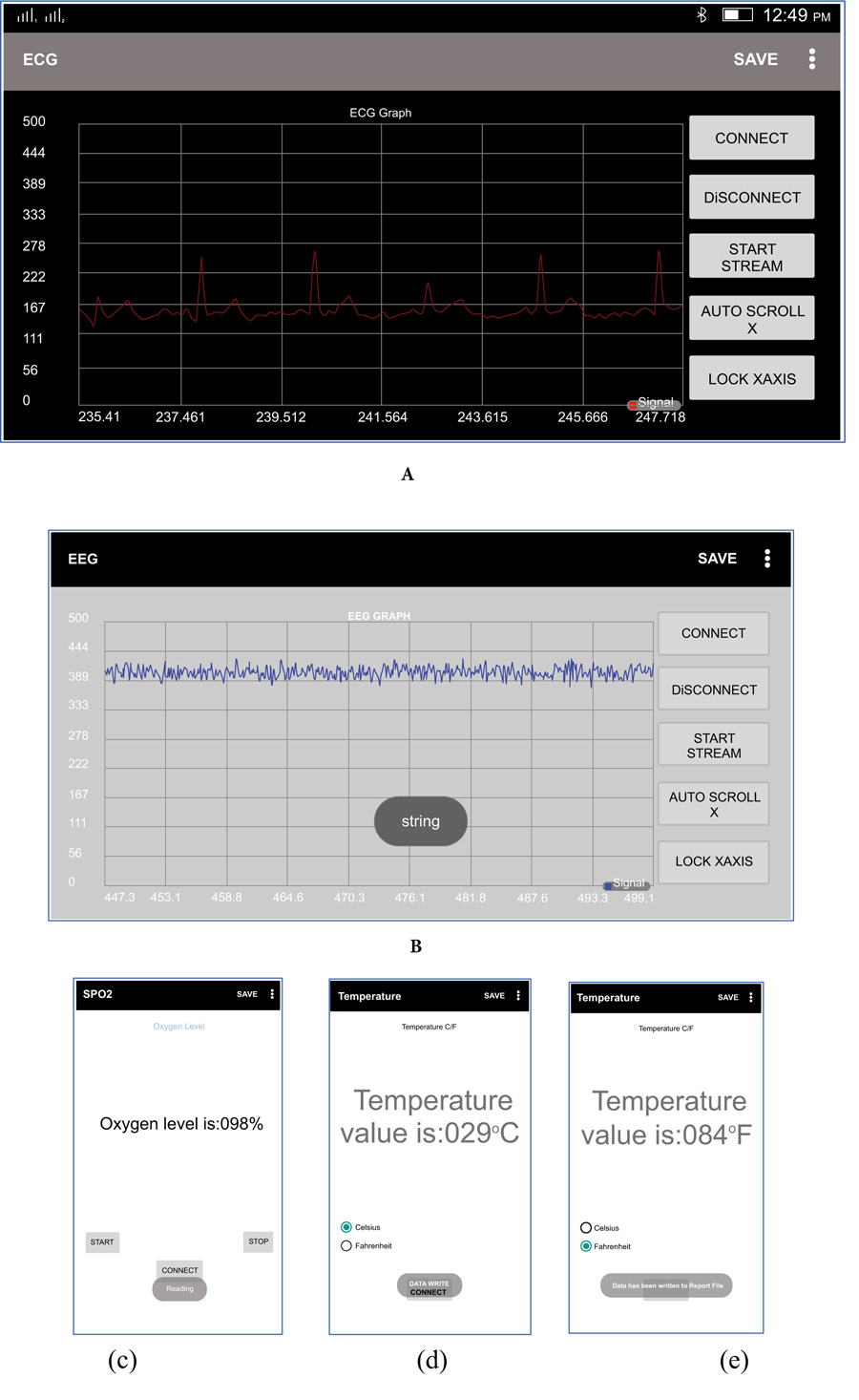

Fig. (12). Recorded ECG and EEG signals in (a) and (b); SpO2 and temperature values in (c), (d) and (e) [43].

Kher et al. developed a portable, low-cost wearable system for recording ECG signals of a subject [44]. Two separate prototype designs for recording single lead and 12-lead ECG (Fig. 13) have been implemented using ADS 1298 and STM32L431RCT6 microcontroller. The STM32L431RCT6 is a 32-bit ARM cortex-M4 microcontroller from ST Microelectronics. ADS 1298 is a 24-bit analog front end by Texas Instruments for biopotential acquisition, especially for ECG and EEG recording. It has 8-channel ADC, an inbuilt right leg drive amplifier with SPI compatible serial interface. The recorded ECG signal is sent to the computer/ laptop via Bluetooth as well as displayed on the OLED display. The low-cost, portable system could be used for long-term monitoring of ECG signals to avoid hospitalization. The physicians can also use the system for the first-hand monitoring of cardiac abnormalities of a subject.

Incorporating IoT is the latest technological enhancement in wearable health monitoring systems. With continuous monitoring provided by IoT technologies and real-time alerts, patients and their families feel safe and secure even being at a remote home. Jie et al. [45] have devised the Wearable IoT-cloud-baSed hEalth monitoring system (WISE) for real-time personal health monitoring. WISE adopts the body area sensor network- the heartbeat, body temperature, and blood pressure sensors. The WISE system eliminates the use of a smartphone as data gathered from the BASN are directly transmitted to the cloud. A lightweight, wearable LCD may be used to have a quick look at the real-time data. Fig. (14) depicts the block diagram and architecture of the WISE system.

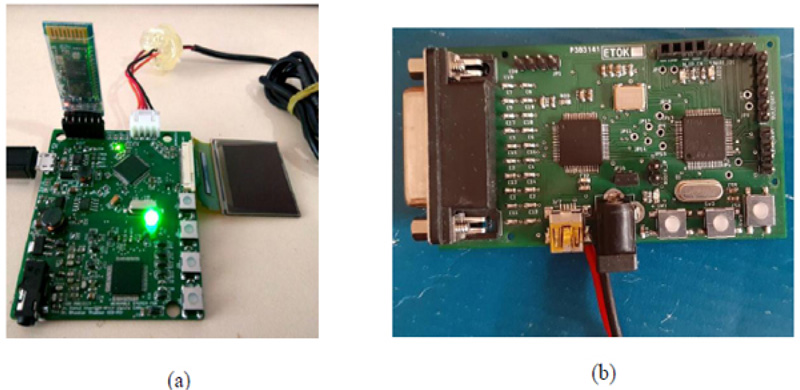

Fig. (13). (a) Prototype 1 and (b) Prototype 2 developed by Kher et al. [44].

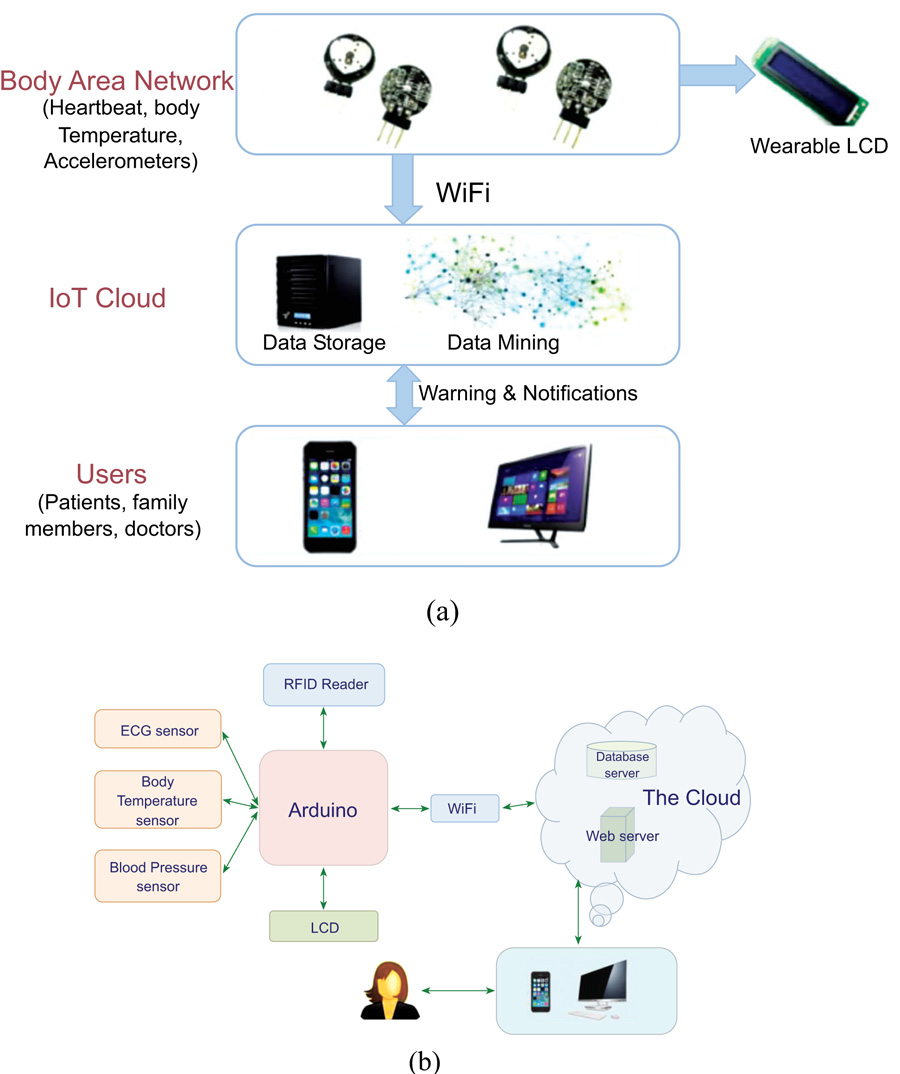

Fig. (14). The WISE system: (a) framework and (b) block diagram [45] © Jie Wan et. al.

IoT has been incorporated for developing personal healthcare devices, Parkinson’s and Alzheimer’s disease diagnosis and monitoring systems, student healthcare monitoring systems, cloud-based framework to control Ebola virus outbreak, wearable ECG monitoring system, human activity recognition assembly, etc [46-54].

Once considered an entity for research, the wearable devices/wearables are now commercially available. This section describes commercially available gadgets that are already in use or will be in use in the near future, the latest trends in wearables medical devices, and the key challenges.

Currently research is being conducted on health-monitoring functionalities in smart jewellery. The smart ring is the most prominent kind of smart jewellery as of now. Jewellery brands like Oura have already introduced smart rings that can track health data of the user and the same can later be reviewed on a smartphone. Many other smart jewellery options like bangles and bracelets are being designed by well-known fashion firms. The Joule have come up with a range of smart health-tracking earrings [54].

The fitness trackers are widely used to monitor the number of steps, calories burned, heart rate, and a range of other parameters. It is difficult to clearly distinguish the fitness tracking devices and smartwatches as products such as FitBit’s now include smartwatch features like call and message alerts in addition to fitness-oriented features. On the other hand, smartwatches are equipped with many fitness tracking options. Fitness trackers are becoming cheaper due to fewer features as their main focus is on functionality rather than artistic appeal [54].

Instead of using smaller wearables, smart clothing can provide more detailed perceptions by including a large number of body sensors. Samsung has conducted wide research in this sector and may soon come up with smart shirts with respiratory diseases diagnostic capabilities and smart shoes that monitor running methods. Among available smart clothing are Siren Socks, which detect foot ulcers, smart pants that vibrate for improvising during yoga workouts and Naviano smart swimsuits that provide the user about when to apply sunscreen.

Companies have started generating brand loyalties by using smart clothing, e.g., Tommy Hilfiger introduced location-tracking functionality in their Xplore range of jeans. The company would reward more Tommy Hilfiger products to the customers who have worn the product more frequently [54].

Unlike wearables, implantables are to be swallowed or inserted inside the user’s body rather than measuring the parameters from the skin. For instance, Proteus produces pills contain sensors that can monitor blood pressure and other health parameters [54].

The biggest challenge for wearable technology is to get sustained customers. Many wearable systems have a short life because its consumers are not sustained. Poor battery life, sync issues with smartphones, awful and uncomfortable design, UX problems are some of the major challenges associated with wearable devices. Thus, despite being very strong functionally and physically, the wearable devices fail to create any meaningful impact on the users, their lives, habits, or behaviours [57].

One of the biggest challenges faced by wearable systems today is battery life. Effective power management is required in wearable devices as battery space is limited, and they are required to run for a long time. The comfortable design of wearable devices is of prime importance, especially when they are to be worn for a long time period. Wearable systems/ devices are frequently exposed to water, sweat, etc.; hence, they require different levels of protection.

Integration of radio and Antennae is another challenge with wearable devices, given the small form factor of these products. Effective integration of multiple antennae with reasonable signal strength and compact packing of hardware in a small size is quite difficult. There is a potential safety risk as wearable devices contain lithium batteries which are close to the body at all times. There have been many incidents that involve batteries catching fire and Fitbits damaging wrists due to explosions. Other challenges with wearable devices are radiations emitted at close proximity to vital organs of the body, security and privacy concerns, hacking and manipulation of user data due to lack of encryption [58].

A comprehensive review of wearable health monitoring systems has been presented here. Researchers have developed wearables systems mainly for recording ECG, heart rate, SpO2, etc. Gradually, other attachments like wireless transmission of recorded health data over distant places have been added. With ever-growing technological advancements, they soon became commercially available. Very soon, smartphone and gadget manufacturers like Apple, Samsung, Xiaomi started incorporating the health monitoring features in their devices in miniaturised forms. The wearables like smart clothes and smart jewellery have also been becoming popular among other smart gadgets that incorporate health monitoring capabilities. IoT can be considered as the latest technological addition in wearable health monitoring systems. In the future, IoT-based health monitoring systems will alert families and doctors immediately as soon as issues arise, providing increased mobility and independence to the patients.
